Details

---

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.




Teltonika Networks RMS has various available services that allow for extensive control and advanced analytics for compatible devices. There are 3 types of RMS Services:

• Management: Complete remote control over all connected Teltonika Networks compatible devices even without a public IP.
• Connect: Unified access system allowing to reach and control connected smart devices remotely with RMS.
• VPN: RMS VPN is the safest way to reach multiple endpoints remotely.

Note: All Teltonika devices including this RUT956 comes with a free 30-day trial period for the RMS.



Security is the top priority for all Teltonika Networks products and the same applies to RMS. We use multiple measures to ensure a safe connection, including numerous security protocols and data encryption.

• Encrypted Communication: Keep your setup safe with encrypted channels to communicate with Teltonika Networks and third-party devices.
• Proprietary Protocol: Ensure the safety of your data transfer between router and server with the proprietary protocol.
• AWS Cloud Security: RMS is hosted on AWS, chosen for its robust security capabilities and tools.
• Teltonika ID: Use your biometrics for highly secure yet fast and easy authentication.

Features

Hardware:

• Mobile: 4G/ LTE (Cat 4), 3G, 2G
• CPU: Mediatek, 580 MHz, MIPS 24KEc
• Memory: 128 MB, DDR2
• Storage: 16 MB, SPI Flash
• Powering options:
  • 4-pin industrial DC power socket,
  • 9 - 30 VDC
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• SD Card: Micro SD (internal)

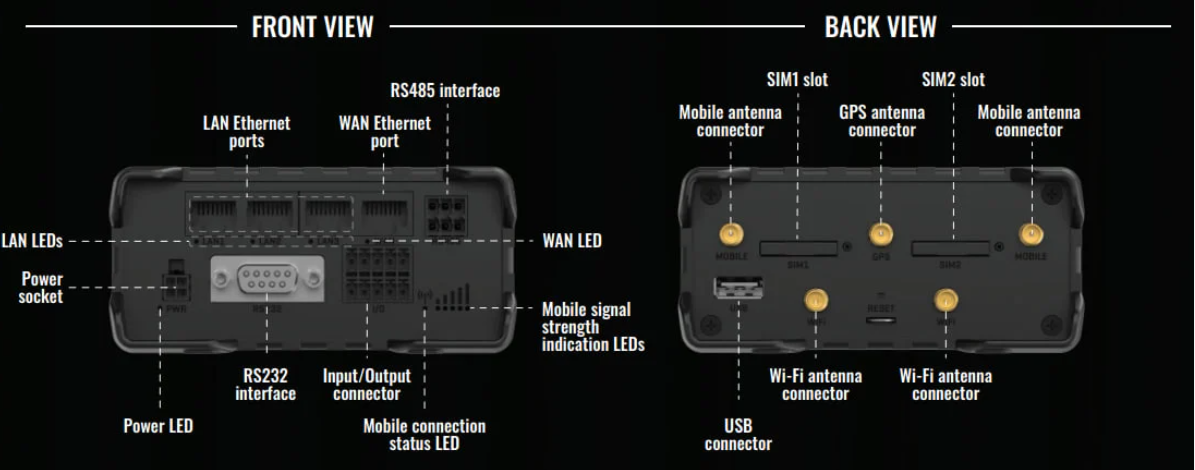

• Antenna connectors:
  • 2 x SMA for mobile,
  • 2 x RP-SMA for Wi-Fi,
  • 1 x SMA for GPS
• Ethernet: 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Inputs/Outputs:
  • On 4-pin socket:
    • 1 x Digital input
    • 1 x Digital open collector output
  • On 10-pin socket:
    • 1 x Isolated digital input
    • 1 x Digital dry input
    • 1 x Analog input
    • 1 x Isolated open collector output (requires external voltage)
    • 1 x Relay output (non-latching)
• Serial:
  • 1 x RS232
  • 1 x RS485
• Other: 1 x USB host
• Status LEDs:
  • 1 x Bi-color connection status
  • 5 x Signal strength
  • 4 x Ethernet status
  • 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing, plastic panels
• Dimensions (W x H x D): 110 x 50 x 100 mm
• Weight: 287 g



Software:

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features:
  • Auto APN,
  • Band lock,
  • SIM switch,
  • Operator black/white list,
  • Data/SMS limits
• Network features: Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS
• Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
• GNSS: NMEA forwarding, AVL, Geofencing
• Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
• Serial: Console, Over IP, Modem, NTRIP, Modbus

Packing List

• 1 x Router RUT906
• 1 x 9W PSU
• 2 x Mobile antennas (magnetic mount, SMA male, 3m cable)
• 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• 1 x RS485 connector block
• 1 x I/O connector block
• 1 x Ethernet cable (1.5m)
• 1 x SIM Adapter kit
• 1 x Quick Start Guide
• 1 x Packaging box
